Raven
Mercedes-Benz Sprinter
contact an expert
Explore Without Limits
Enjoy an optimized space with a queen-size bed. AWD model available. Bright interior featuring windows on both sides of the cabin.
seats up to
5
sleeps up to
4
shower
Hidden
lenght
23'
height
10' 1"
vehicle
Mercedes-Benz Sprinter
Raven highlights
Vehicle
All-Wheel Drive
Confident traction on highways, gravel roads, and off-grid trails—drive further, in all conditions.
Sleeping Area
Queen Bed
Spacious sleeping for two—no compromises on rest after long adventure days.
Bathroom

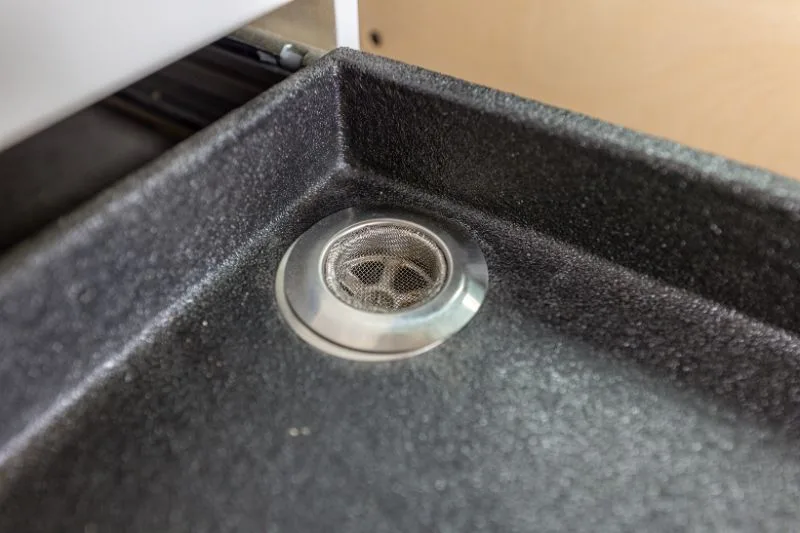

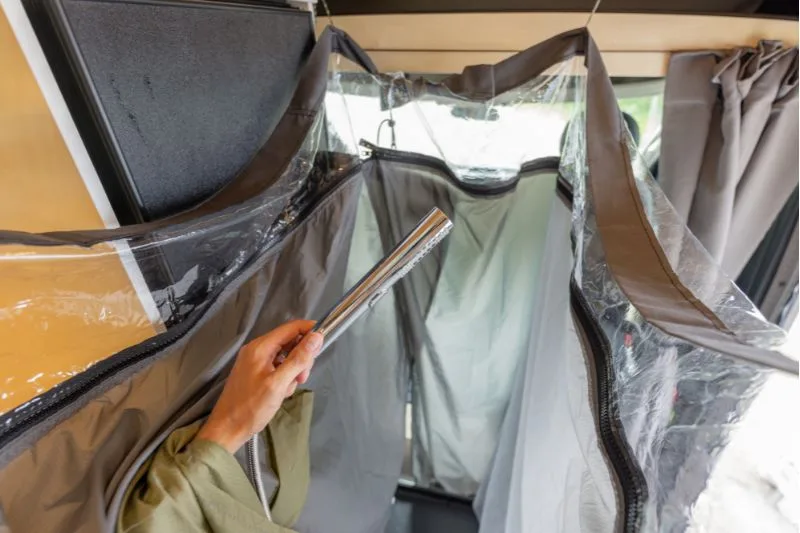

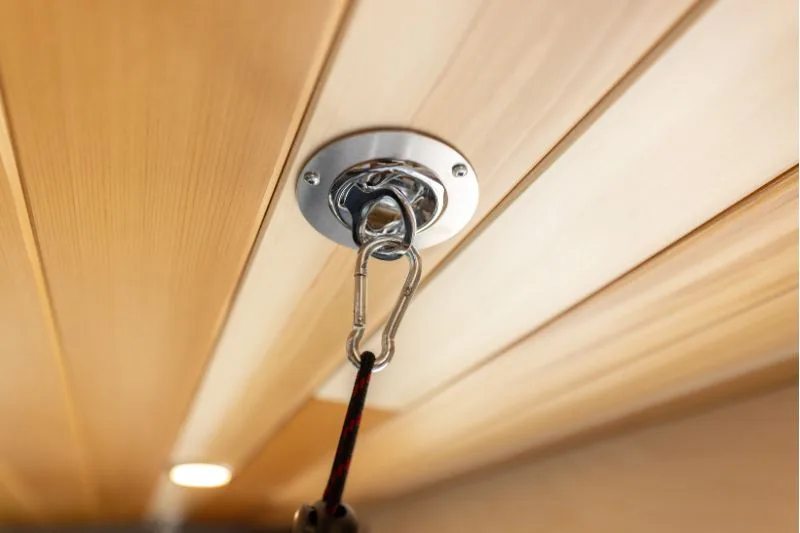

Hidden Shower
An innovative shower to maximize storage while combining adventure and practicality.
sunny_snowing
4-season
editor_choice
5-year warranty
battery_charging_full
off-grid

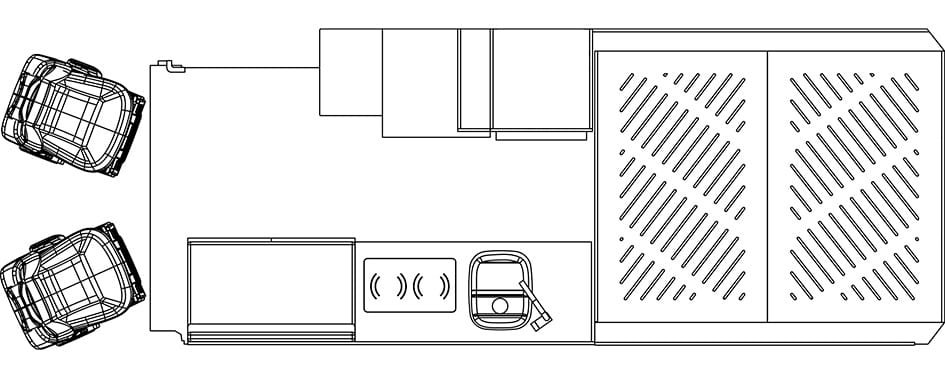

floor plans
Starting at $207 577 CAD
Raven 2
Seats 2
Sleeps up to 4
Sofa
Indoor Hidden Shower
Fixed Queen Bed
Extra Queen Bed (optional)

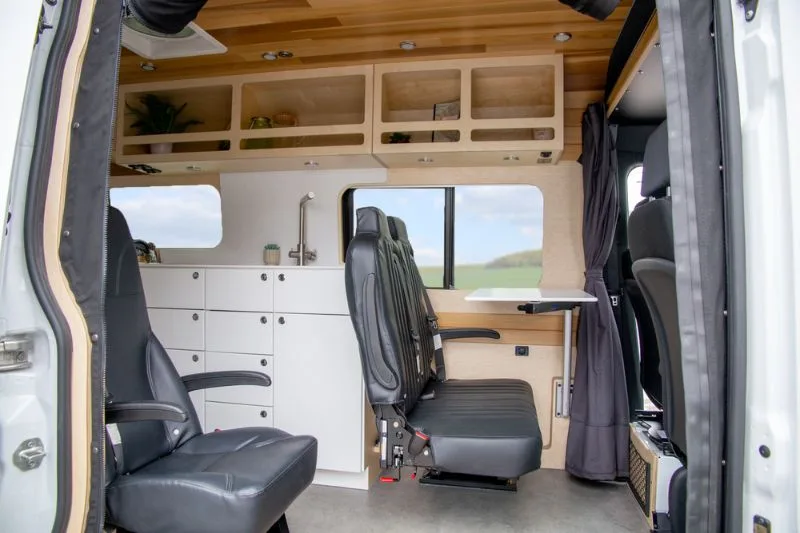

Raven 3
Seats 3
Sleeps up to 4
Approved bench for
1 additional passenger
1 additional passenger
Indoor Hidden Shower
Fixed Queen Bed
Extra Queen Bed (optional)
Raven 4
Seats 4
Sleeps up to 4
Approved bench for
2 additional passengers
2 additional passengers
Indoor Hidden Shower
Ajustable Queen Bed
Extra Queen Bed
Raven 2
Seats 2
Sleeps up to 4
Sofa
Indoor Hidden Shower
Fixed Queen Bed
Extra Queen Bed (optional)
Raven 3
Seats 3
Sleeps up to 4
Approved bench for
1 additional passenger
1 additional passenger
Indoor Hidden Shower
Fixed Queen Bed
Extra Queen Bed (optional)
Raven 4
Seats 4
Sleeps up to 4
Approved bench for
2 additional passengers
2 additional passengers
Indoor Hidden Shower
Ajustable Queen Bed
Extra Queen Bed

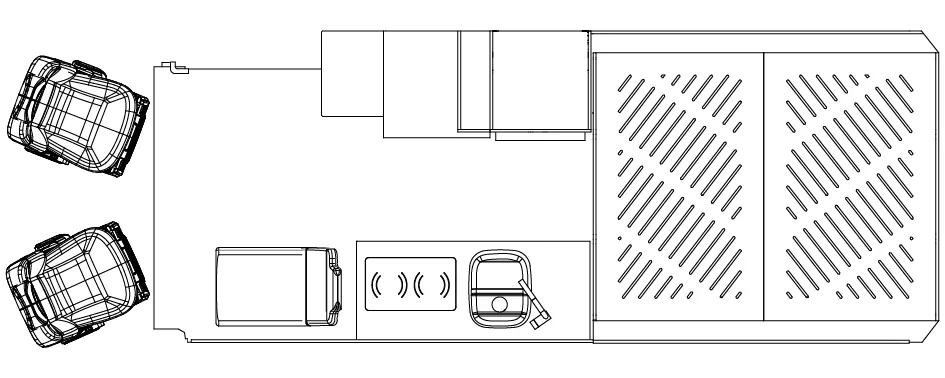

The layout plans above are presented for demonstration purposes. and may show options that are not included as standard.
see full specsphotos

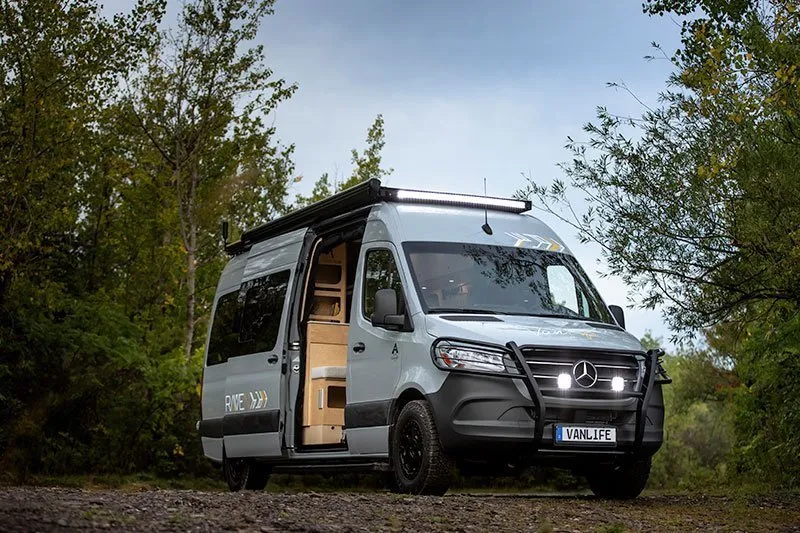

Exterior

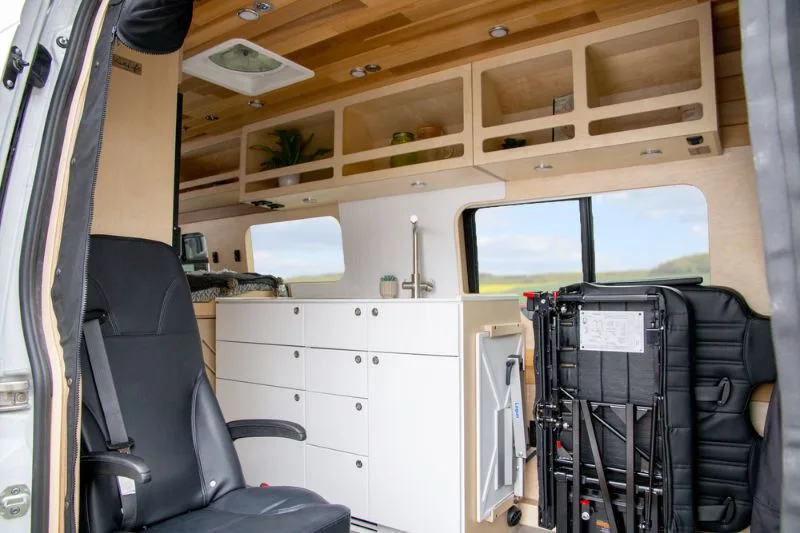

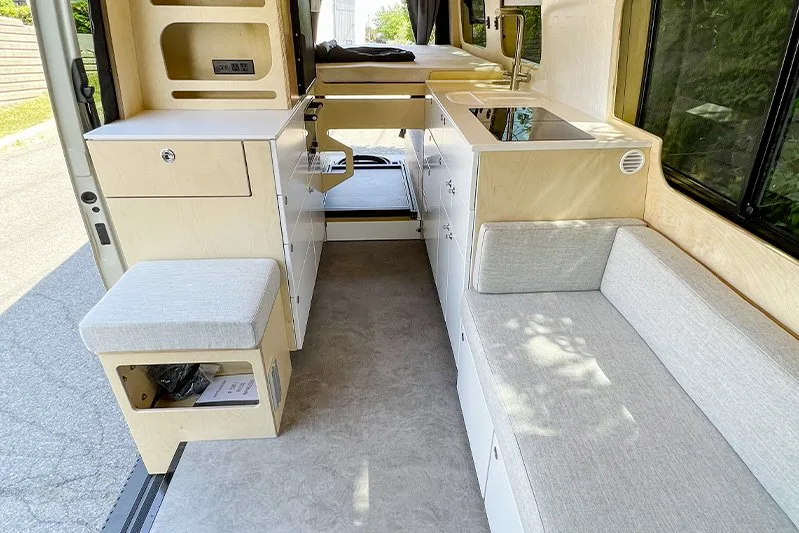

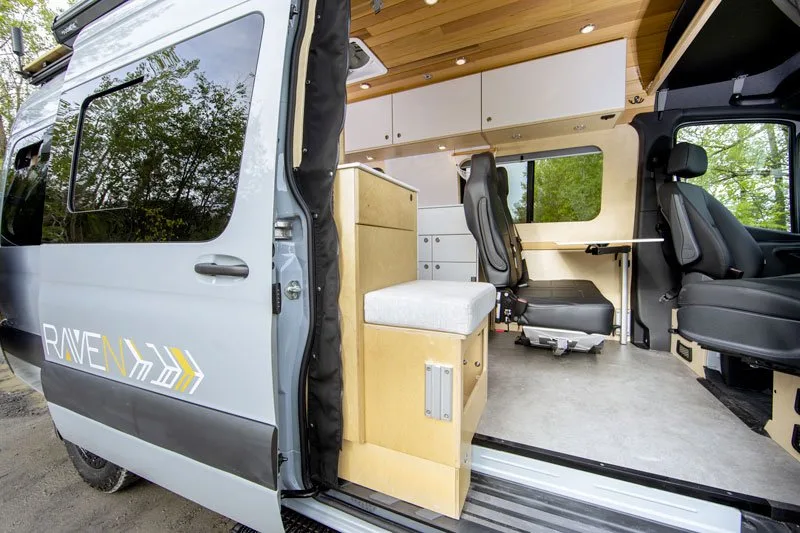

Living area

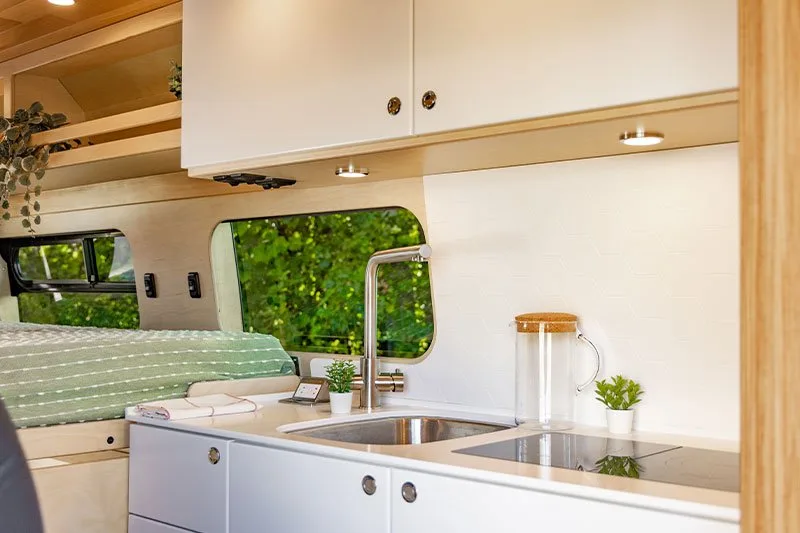

Kitchen

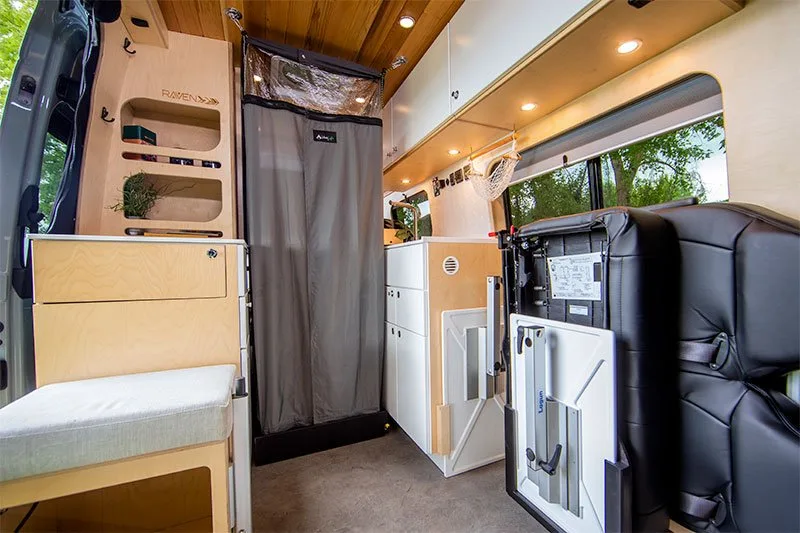

Bathroom

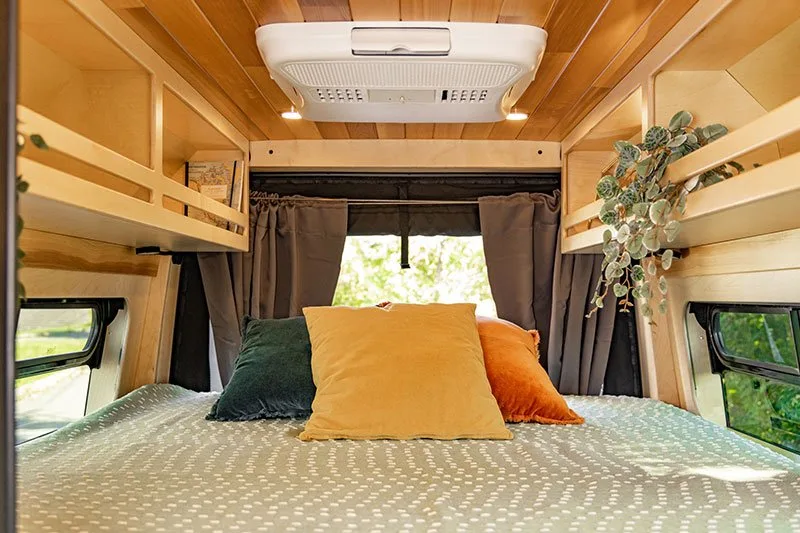

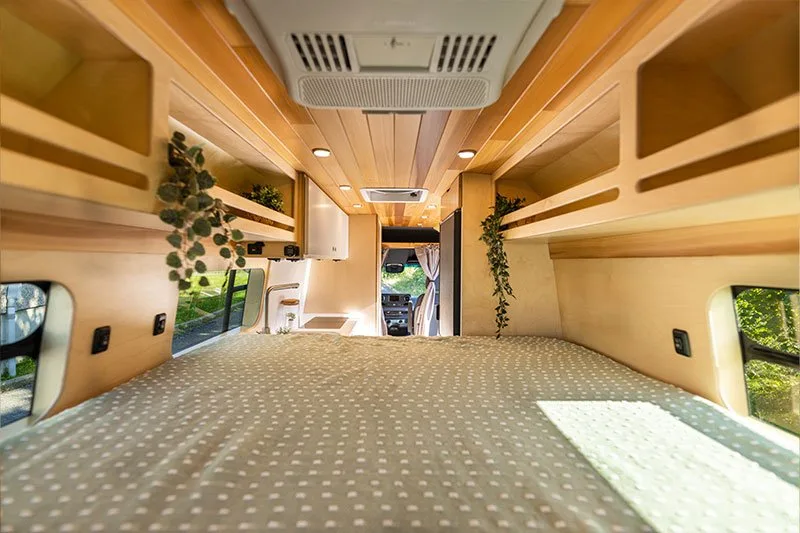

Sleeping area
Garage
Some photos are for reference and may show a different model and options that are not included as standard.
specs & options
Starting at $207 577 CAD
Vehicle
| Vehicle | Mercedes-Benz® Sprinter 2500 170 Cargo |
| Engine | 2.0L 4-cylinder turbo engine (diesel) – High efficiency |
| Fuel type | Diesel |
| Wheel drive | RWD or AWD (option) |
| Transmission | 9-speed 9G-Tronic automatic |
| Fuel consumption | 12 L/100km (Estimated, Highway) |
| Exterior length | 23′ |
| Exterior height | 10’1″ |
| Interior height | 6’2″ |
Interior
| 4 seasons – insulation level R10 | Included |
| 3.5 cf compressor refrigerator (12V) | Included |
| Double induction stove (1800W) | Included |
| Small electric oven/toaster/air fryer | Included |
| Utensil drawer with cutting board | Included |

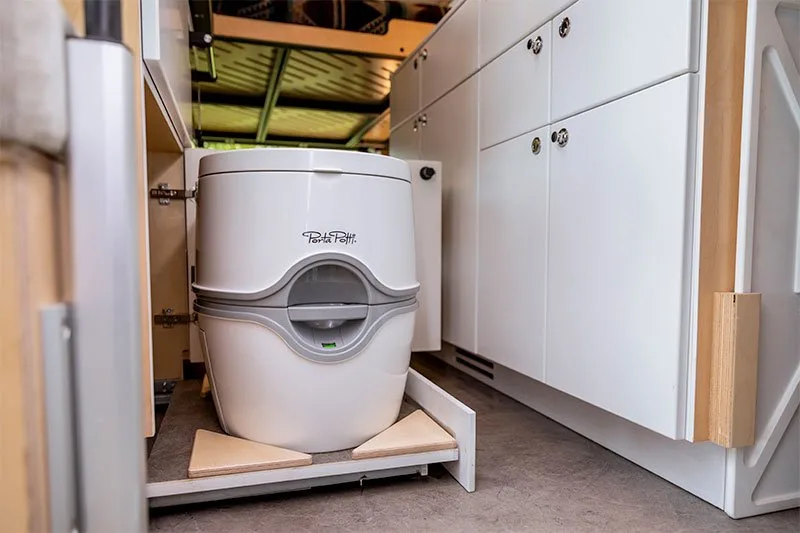

| Cartridge toilet | Included |
| Swivel driver and passenger seats | Included |
| Garbage and recycling | Included |
| Stainless steel sink (16.5″x13.5″) | Included |
| Lots of storage | Included |
| Hidden indoor shower – with integrated toilet | Included |
| Electric blind on window behind driver’s seat and on three rear windows | Included |
| 2 LED dimmer switches (front ceiling and bedroom) | Included |
| 2 reading lamp with integrated USB output (12V) | Included |

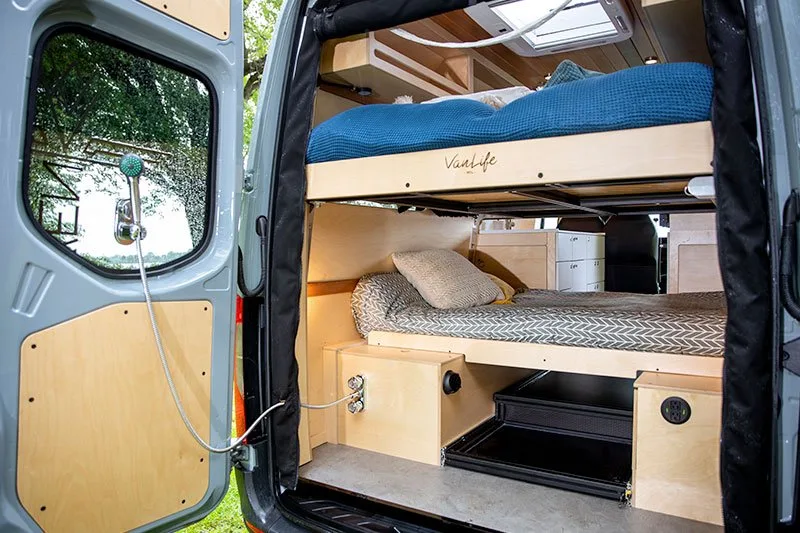

| 1 fixed queen bed (60″x74″) Garage space under the bed | Included |
| 1 extra folding queen bed (60″x69″) | 4 passengers model (option on 2 passengers model) |

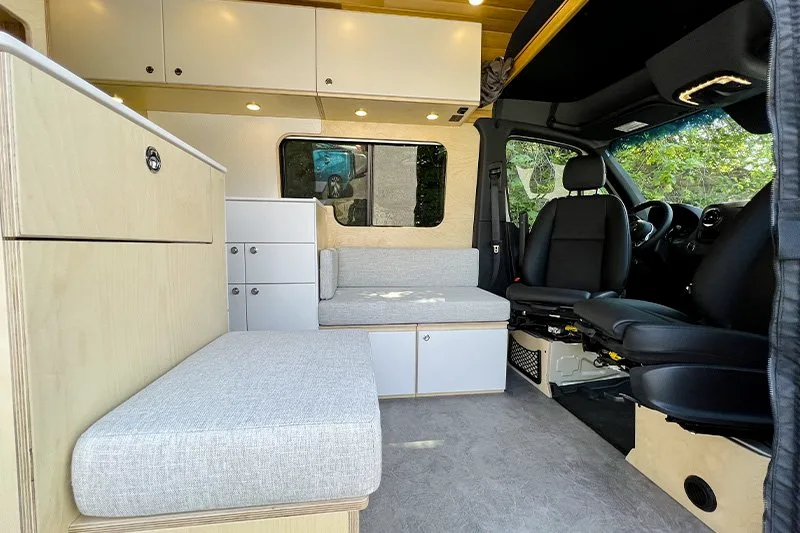

| Large sofa | 2 passengers model |

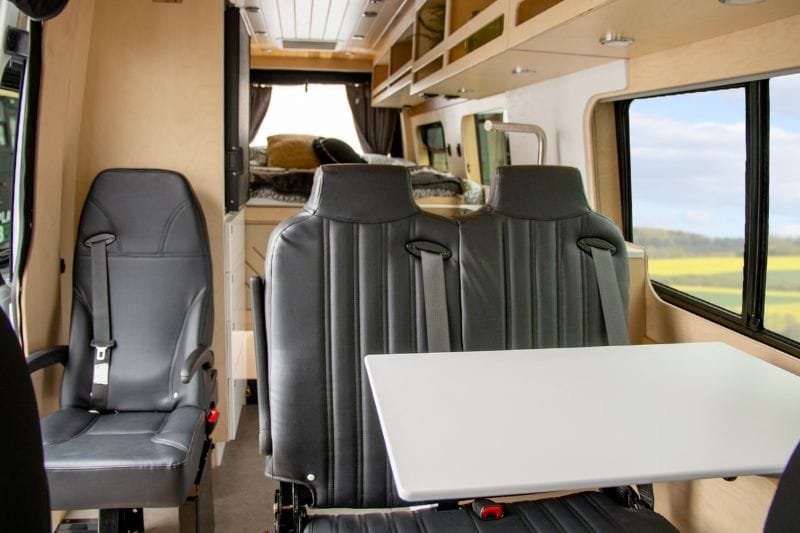

| Approved seat for additional passengers | 3, 4 and 5 passengers model |
| Adjustable bed | Option |
| Electric queen bed (60″x74″ 12V) + Garage space under the bed | Option |
| Electric queen bed (60″x74″ 12V) + Dinette table convertible into an additional queen bed | Option |
| Electric queen bed (60″x74″ 12V) + Lagun table convertible into an additional queen bed | Option |
| Opaque curtains | Option |
| Trunk drawer (Bicycle, storage management or outdoor kitchen) | Option |
| Thule shoe organizer | Option |
| Air conditioning 13 000 BTU (non-autonomous – 30AMP plug) | Option |
| Nomadic Cooling air conditioning (12V) | Option |
Exterior
| Complete roof rack – 4 crossbars | Included |
| Dometic (12′) self-supporting awning | Included |
| (90”) sliding door step and (36”) driver’s front door step | Included |

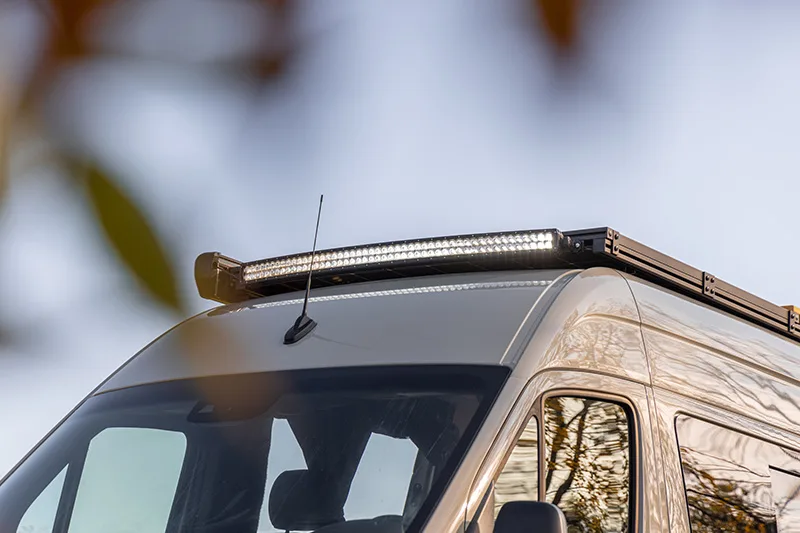

| Curved LED light bar for roof rack (50″) | Included |
| 2 FanPlus roof fans | Included |
| Window on the sliding door | Included |
| Fixed window along the entire length of the driver’s side | Included |
| 4 seasons screens – sliding door and rear doors | Included |

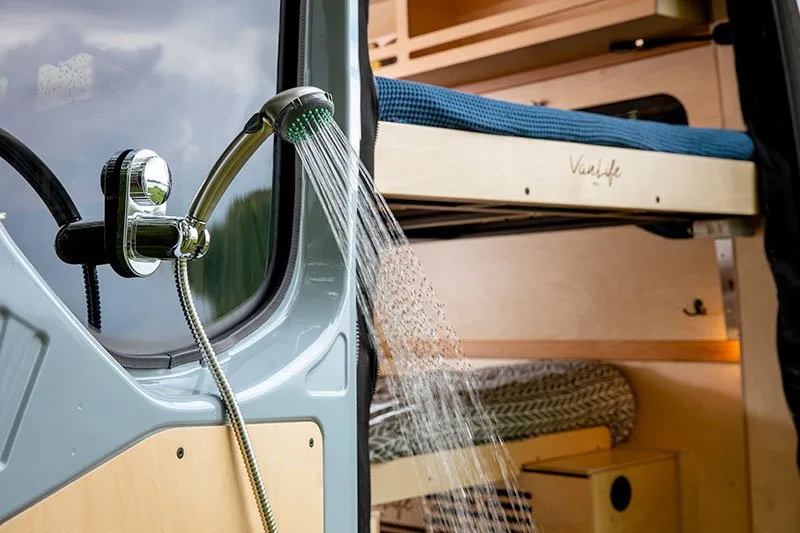

| Outdoor shower | Included |
| Electric skylight | Option |
| Roof rack – Extra crossbar | Option |
| Lateral paddleboard rack | Option |
| Thule Elite Van XT rear door bike rack | Option |
| Thule XT Sport or Pulse Alpine roof box | Option |
| Roof terrace | Option |
| Fixed side ladder | Option |
| Thule telescopic ladder – 9 steps | Option |
Electrical, Heating & Plumbing
| Solar panels (2 x 200W – 400W total) | Included |
| Electricity (12V DC-120V AC) | Included |
| Cigarette lighter outlet (12V) | Included |
| Lithium battery (300Ah) | Included |
| Webasto heating system (2000W) | Included |
| Stainless Steel Webasto Exhaust Silencer / Muffler | Included |
| 27L water heater | Included |
| 86L water tank | Included |
| Fresh water system – 18L bottles with pump – storage capacity of 2 bottles | Included |
| Lithium self-heating batteries (400AH) | Option |
| Lithium self-heating batteries (800AH) | Option |
| 2 additional solar panels (100W each: 600W total + MPPT charge controller) | Option |
Warranty
| Manufacturer’s warranty | Vehicle limited warranty : Basic coverage for 3 years or 60,000 kilometres Powertrain waranty : Powertrain coverage for 5 years or 100,000 kilometres |
| VanLife Campers warranty | VanLife Fabrication honors a five-year warranty on the entire conversion, limited exclusively to components manufactured by VanLife Campers, as of the date the converted vehicle is put on the market. The accessories added to the van chassis by VanLife Campers from suppliers are guaranteed by these external installers. Conditions apply. Complete details on request. |
new release:
the modular electrical bed
the modular electrical bed
Discover the electric bed, an innovation from VanLife Campers that allows you to maximize your van’s space in one simple move. Lift it to create a lounge/dining area or lower it close to the floor for easy bed access. Available in multiple configurations!
Video shown in the LIV model. Available on all models.
